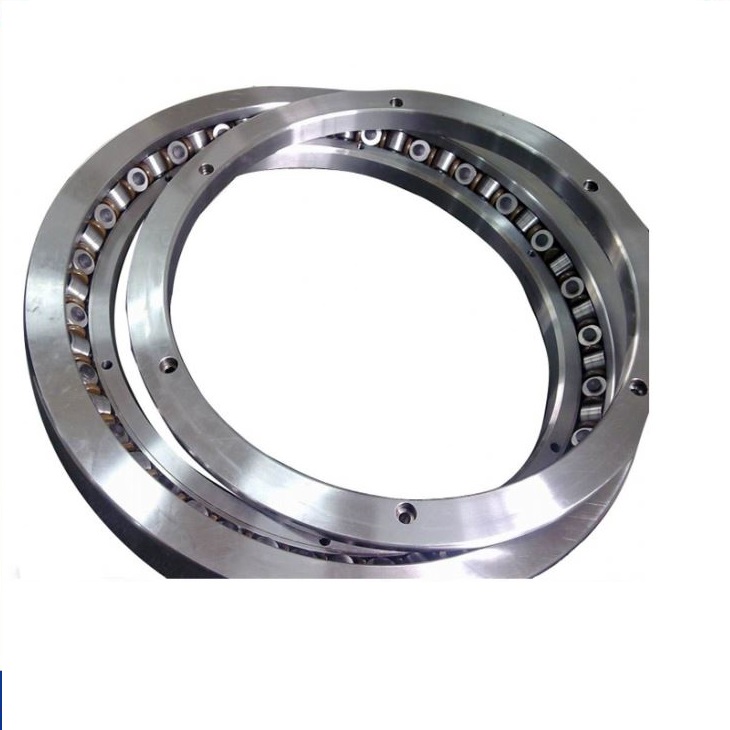

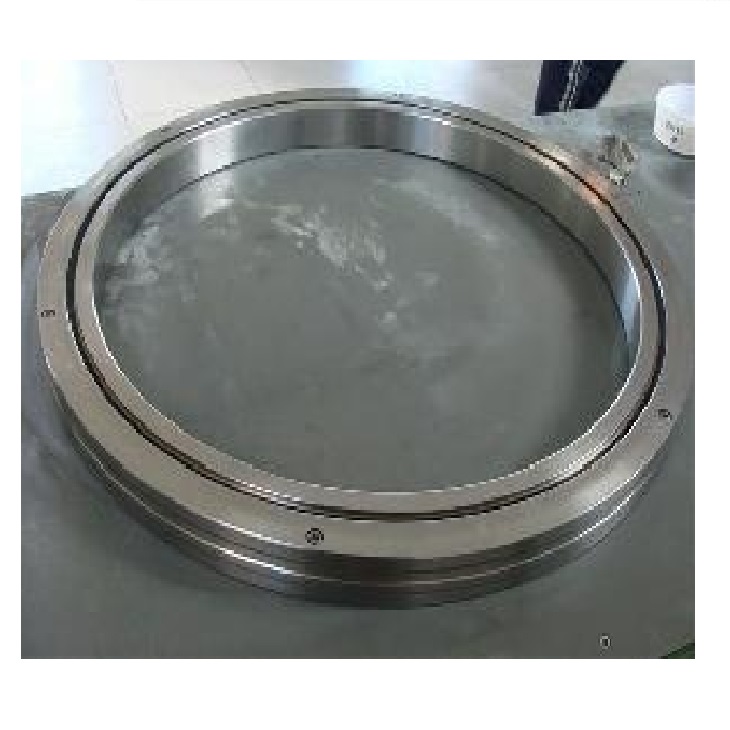

Thin-section crossed roller bearing of series RE (inner ring division) .The inner ring of bearings are designed for two parts, but their outer ring as a whole .This kind of design is most suitable to apply in the highest rotating precision of outer ring.
Thin-section crossed roller bearing of series RE (inner ring division) .The inner ring of bearings are designed for two parts, but their outer ring as a whole .This kind of design is most suitable to apply in the highest rotating precision of outer ring.
RE2008,RE2508,RE3010,RE3510,RE4010,RE4510,RE5013,RE6013,RE7013,RE8016,RE9016,RE10016,
RE10020,RE11012,RE11015,RE11020,RE12016,RE12025,RE13025,RE14016,RE14025,RE15013,
RE15025,RE15030,RE16025,RE17020,RE18025,RE19025,RE20025,RE20030,RE20035,RE22025,
RE24025,RE25025,RE25030,RE25040,RE30025,RE30035,RE30040,RE35020,RE40035,RE40040,
RE45025,RE50025,RE50040,RE50050,RE60040

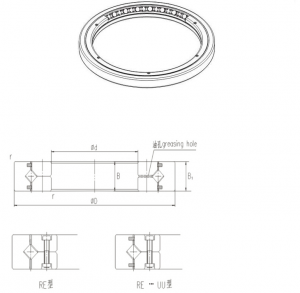

| Shaft dia | Model | Main dimensions | basic rated load(radial) | Weight | |||||||
| Kg | |||||||||||
| ID | OD | dp | Width | Oil hole | C | C0 | |||||
| B B1 | kN | kN | |||||||||
| a | b | r | |||||||||
| 20 | CRE 2008 | 20 | 36 | 29 | 8 | 2 | 0.8 | 0.8 | 3.23 | 3.1 | 0.04 |
| 25 | CRE 2508 | 25 | 41 | 34 | 8 | 2 | 0.8 | 0.8 | 3.63 | 3.83 | 0.05 |
| 30 | CRE 3010 | 30 | 55 | 43.5 | 10 | 2.5 | 1 | 1 | 7.35 | 8.36 | 0.12 |
| 35 | CRE 3510 | 35 | 60 | 48.5 | 10 | 2.5 | 1 | 1 | 7.64 | 9.12 | 0.13 |
| 40 | CRE 4010 | 40 | 65 | 53.5 | 10 | 2.5 | 1 | 1 | 8.33 | 10.6 | 0.16 |
| 45 | CRE 4510 | 45 | 70 | 58.5 | 10 | 2.5 | 1 | 1 | 8.62 | 11.3 | 0.17 |
| 50 | CRE 5013 | 50 | 80 | 66 | 13 | 2.5 | 1.6 | 1 | 16.7 | 20.9 | 0.27 |
| 60 | CRE 6013 | 60 | 90 | 76 | 13 | 2.5 | 1.6 | 1 | 18 | 24.3 | 0.3 |
| 70 | CRE 7013 | 70 | 100 | 86 | 13 | 2.5 | 1.6 | 1 | 19.4 | 27.7 | 0.35 |
| 80 | CRE 8016 | 80 | 120 | 101.4 | 16 | 3 | 1.6 | 1 | 30.1 | 42.1 | 0.7 |
| 90 | CRE 9016 | 90 | 130 | 112 | 16 | 3 | 1.6 | 1.5 | 31.4 | 45.3 | 0.75 |
| 100 | CRE 10016 | 100 | 140 | 121.1 | 16 | 3.5 | 1.6 | 1.5 | 31.7 | 48.6 | 0.83 |
| CRE 10020 | 150 | 127 | 20 | 3.5 | 1.6 | 1.5 | 33.1 | 50.9 | 1.45 | ||
| 110 | CRE 11012 | 110 | 135 | 123.3 | 12 | 2.5 | 1 | 1 | 12.5 | 24.1 | 0.4 |
| CRE 11015 | 145 | 129 | 15 | 3.5 | 1.6 | 1 | 23.7 | 41.5 | 0.75 | ||
| CRE 11020 | 160 | 137 | 20 | 3.5 | 1.6 | 1.5 | 34 | 54 | 1.56 | ||
| 120 | CRE 12016 | 120 | 150 | 136 | 16 | 3.5 | 1.6 | 1 | 24.2 | 43.2 | 0.72 |
| CRE 12025 | 180 | 152 | 25 | 3.5 | 2 | 2 | 66.9 | 100 | 2.62 | ||
| 130 | CRE 13015 | 130 | 160 | 146 | 15 | 3.5 | 1.6 | 1 | 25 | 46.7 | 0.72 |
| CRE 13025 | 190 | 162 | 25 | 3.5 | 2 | 2 | 69.5 | 107 | 2.82 | ||
| 140 | CRE 14016 | 140 | 175 | 160 | 16 | 2.5 | 1.6 | 1.5 | 25.9 | 50.1 | 1 |
| CRE 14025 | 200 | 172 | 25 | 3.5 | 2 | 2 | 74.8 | 121 | 2.96 | ||
| 150 | CRE 15013 | 150 | 180 | 166 | 13 | 2.5 | 1.6 | 1 | 27 | 53.5 | 0.68 |
| CRE 15025 | 210 | 182 | 25 | 3.5 | 2 | 2 | 76.8 | 128 | 3.16 | ||
| CRE 15030 | 230 | 192 | 30 | 4.5 | 3 | 2 | 100 | 156 | 5.3 | ||
| 160 | CRE 16025 | 160 | 220 | 192 | 25 | 3.5 | 2 | 2 | 81.7 | 135 | 3.14 |
| 170 | CRE 17020 | 170 | 220 | 196.1 | 20 | 3.5 | 1.6 | 2 | 29 | 62.1 | 2.21 |
| 180 | CRE 18025 | 180 | 240 | 210 | 25 | 3.5 | 2 | 2 | 84 | 143 | 3.44 |
| 190 | CRE 19025 | 190 | 240 | 219 | 25 | 3.5 | 1.6 | 1.5 | 41.7 | 82.9 | 2.99 |
| 200 | CRE 20025 | 200 | 260 | 230 | 25 | 3.5 | 2 | 2.5 | 84.2 | 157 | 4 |
| CRE 20030 | 280 | 240 | 30 | 4.5 | 3 | 2.5 | 114 | 200 | 6.7 | ||
| CRE 20035 | 295 | 247.7 | 35 | 5 | 3 | 2.5 | 151 | 252 | 9.6 | ||
| 220 | CRE 22025 | 220 | 280 | 250.1 | 25 | 3.5 | 2 | 2.5 | 62.3 | 171 | 4.1 |
Packaging Details:
1.Tube packing.
2.Plastic bag +carton
3.According to customer requirement
Delivery Detail: In general 5-10 days after we received your orders
