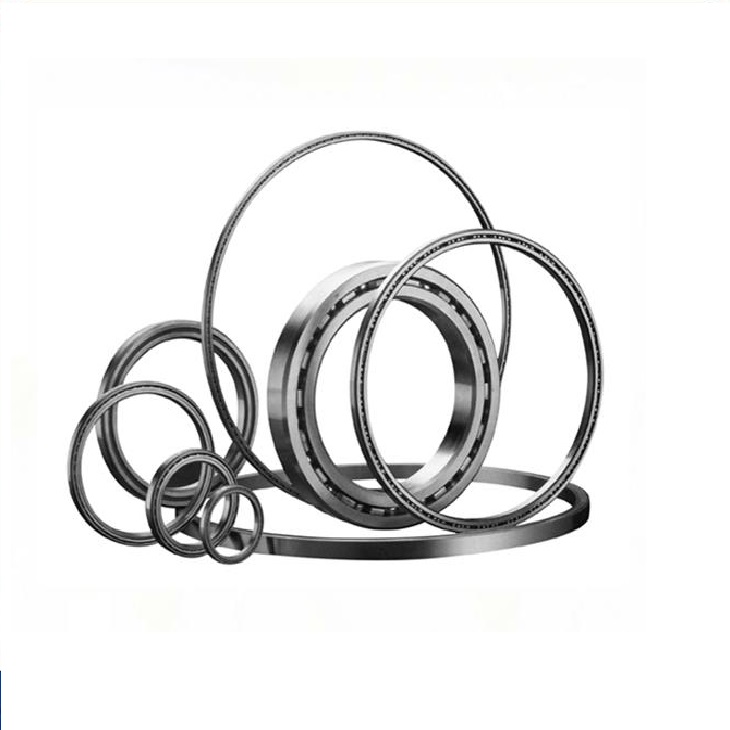

High quality chrome steel Thin section bearings kd200 20x21x0.5 in made in China
| KD200AR0/KD200CP0/KD200XP0 Reail-silm Thin-section bearings (20x21x0.5 in)(508×533.4×12.7 mm) Open Type Slim ring types | ||||||||||||||
| A . Reail-silm Thin-section bearings Parameters |
| Structure- | Angular Contact Ball/Deep Groove Ball/Four-Point Contact Ball | |||||||||||||
| Model number- | KD200AR0/KD200CP0/KD200XP0 | |||||||||||||
| Inner ring(in)- | 20 | |||||||||||||
| Outer ring(in)- | 21 | |||||||||||||
| Width(in)- | 0.5 | |||||||||||||
| Weight(lb)- | 3.65 | |||||||||||||
| Materials- | Chrome steel/GCR15/Stainless steel | |||||||||||||
| Precision grade- | P0 | |||||||||||||
| Lubrication type- | Oil | |||||||||||||
| Material(Ball)- | Steel ball/Ceramic ball | |||||||||||||
| Number of Row- | Single rows | |||||||||||||
| Section Type- | Thin section | |||||||||||||
| Quality- | High speed, Low noise and Long life | |||||||||||||
| B . KD200AR0/KD200CP0/KD200XP0 Reail-silm Thin-section bearings Specification Sheet | ||||||||||||||
| Model Number |
Size(in) | Land Diameters (in) | Capacities in Pounds1 | Weight in Pounds |
Limiting Speeds (RPM) |
Torque Max. No Load (in-oz) |
||||||||
| Bore | Outside Diameter |
Land Dia. L1 |
Land Dia. L2 |
C’bore Dia. L3 |
Radial | Thrust | Moment | |||||||
| Static | Dyn. | Static | Dyn. | Static | Dyn. | |||||||||
| KD200AR0 | 20 | 21 | 20.37 | 20.63 | 20.705 | 16190 | 4356 | 46740 | 11710 | – | – | 3.65 | – | – |
| KD200CP0 | 20 | 21 | 20.37 | 20.63 | – | 14020 | 4164 | – | – | – | – | 3.85 | – | – |
| KD200XP0 | 20 | 21 | 20.37 | 20.63 | – | 16190 | 4356 | 46740 | 11710 | 0 | 0 | 3.65 | – | – |
| C . Type A-KD/Type C-KD/Type X-KD series Reail-silm Thin-section bearings Details | ||||||||||||||
| Product Features | To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic types: radial contact
(type C), angular contact (type A), and fourpoint contact (type X) and in a variety of sizes ,or series (e.g., KA, KB, KC, etc.). Reail-SlIM Thin section ball bearings are available with various separator options to space the rolling elements uniformly and prevent contact between them. |
|||||||||||||
| Applications | Applications in Robotics, inspection equipment, satellites, cameras… anywhere precise positioning and lightweight
designs are critical. |
|||||||||||||
| C . Type A-KD/Type C-KD/Type X-KD series Reail-silm Thin-section bearings 3 types | ||||||||||||||
| Type A-KD | Open REALI-SLIM Bearing Selections Type A Angular Contact, Snapover assembly
permits use of a onepiece circular pocket ring separator and greater ball complement. These bearings will accept radial load and single direction thrust load and are normally used in conjunction with another bearing of similar construction. Type A bearings require the application of thrust to establish contact angle. |
|||||||||||||
| Type C-KD | A Conrad assembled bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in either direction – often used in conjunction with another bearing. |
|||||||||||||
| Type X-KD | Standard bearing lines are most often designed to handle either radial or axial load conditions. The unique feature about the
REALI-SLIM Type X four-point contact bearing line is that the gothic arch geometry of the inner and outer races enables a single bearing to carry three types of contact bearing can often replace two bearings, providing a simplified design. play. This is accomplished by using balls that are larger than the space provided in the raceways. The balls and raceways, therefore, have some elastic deformation in the absence of an external load |
|||||||||||||
| C . Type A-KD/Type C-KD/Type X-KD series Reail-silm Thin-section bearings Model Number | ||||||||||||||
| Type A-KD | KD040AR0,KD042AR0,KD045AR0,KD047AR0,KD050AR0,KD055AR0,KD060AR0,
KD065AR0,KD070AR0,KD075AR0,KD080AR0, KD090AR0,KD100AR0,KD110AR0,KD120AR0,KD140AR0,KD160AR0,KD180AR0, KD200AR0,KD210AR0,KD250AR0,KD300AR0 |
|||||||||||||
| Type C-KD | KD040CP0.KD042CP0.KD045CP0.KD047CP0.KD050CP0.KD055CP0.KD060CP0.
KD065CP0.KD070CP0.KD075CP0.KD080CP0. KD090CP0.KD100CP0.KD110CP0.KD120CP0.KD140CP0.KD160CP0.KD180CP0. KD200CP0.KD210CP0.KD250CP0.KD300CP0 |
|||||||||||||
| Type X-KD | KD040XP0,KD042XP0,KD045XP0,KD047XP0,KD050XP0,KD055XP0,KD060XP0,
KD065XP0,KD070XP0,KD075XP0,KD080XP0,KD090XP0, KD100XP0,KD110XP0,KD120XP0,KD140XP0,KD160XP0,KD180XP0,KD200XP0, KD210XP0,KD250XP0,KD300XP0 |
|||||||||||||
Packaging Details:
1.Tube packing.
2.Plastic bag +carton
3.According to customer requirement
Delivery Detail: In general 5-10 days after we received your orders
