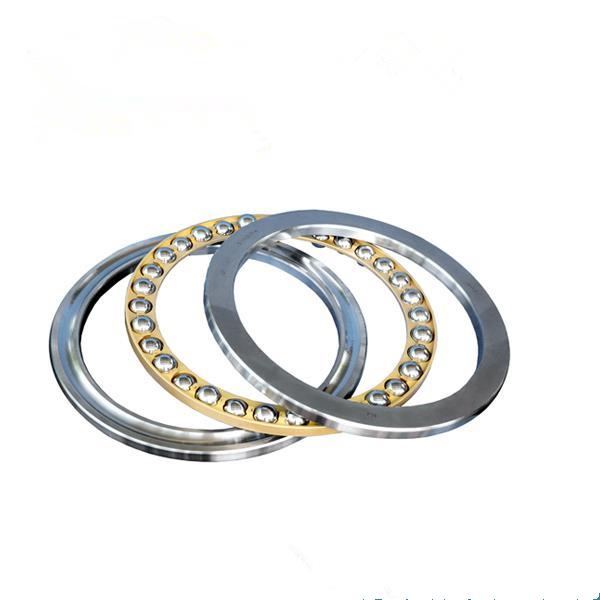

Thrust Ball Bearings, Single Direction

Thrust Ball Bearings, Single Direction

SKU库存: 9999 分类:

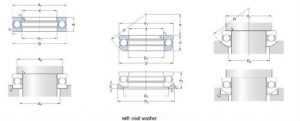

6361439253249214651638743

Principal dimensions Basic load ratings Fatique load limit Speed ratings Designations
(mm) (kN) (kN) (r/min) Bearing Seat washer
d D H H1 dynamic C static    C0 Pu Reference speed Limiting speed
10 24 9 9.95 15.3 0.56 9500 13000 51100
10 26 11 12.7 18.6 0.7 8000 11000 51200
12 28 11.4 13 13.3 20.8 0.77 8000 11000 53201 U 201
12 26 9 10.4 16.6 0.62 9000 13000 51101
12 28 11 13.3 20.8 0.77 8000 11000 51201
15 32 13.3 15 15.9 25 0.92 7000 10000 53202 U 202
15 28 9 10.6 18.3 0.67 8500 12000 51102
15 32 12 15.9 25 0.92 7000 10000 51202
17 35 13.2 15 16.3 27 1 6700 9500 53203 U 203
17 35 12 16.3 27 1 6700 9500 51203
17 30 9 11.4 21.2 0.78 8500 12000 51103
20 40 14.7 17 21.2 37.5 1.4 5600 8000 53204 U 204
20 40 14 21.2 37.5 1.4 6000 8000 51204
20 35 10 15.1 29 1.08 7500 10000 51104
25 47 16.7 19 26.5 50 1.86 5000 7000 53205 U 205
25 47 15 26.5 50 1.86 5300 7500 51205
25 42 11 18.2 39 1.43 6300 9000 51105
25 52 18 34.5 60 2.24 4500 6300 51305
25 60 24 42.3 67 2.45 3600 5000 51405
30 52 17.8 20 25.1 51 1.86 4500 6300 53206 U 206
30 52 16 25.1 51 1.86 4800 6700 51206
30 47 11 19 43 1.6 6000 8500 51106
30 60 21 35.8 65.5 2.4 3800 5300 51306
30 70 28 70.2 122 4.5 3000 4300 51406
30 60 22.6 25 35.8 65.5 2.4 3800 5300 53306 U 306
35 62 19.9 22 35.1 73.5 2.7 4000 5600 53207 U 207
35 62 18 35.1 73.5 2.7 4000 5600 51207
35 52 12 19.9 51 1.86 5600 7500 51107
35 68 24 49.4 96.5 3.55 3400 4800 51307
35 80 32 76.1 137 5.1 2600 3600 51407
35 68 25.6 28 49.4 96.5 3.55 3200 4500 53307 U 307
40 90 38.2 42 95.6 183 6.8 2400 3200 53408 U 408
40 68 20.3 23 44.2 96.5 3.6 3600 5300 53208 U 208
40 68 19 44.2 96.5 3.6 3800 5300 51208
40 60 13 25.5 63 2.32 5000 7000 51108
40 78 26 61.8 122 4.5 3000 4300 51308
40 90 36 95.6 183 6.8 2400 3400 51408
40 78 28.5 31 61.8 122 4.5 2800 4000 53308 U 308
45 73 21.3 24 39 86.5 3.2 3400 4800 53209 U 209
45 73 20 39 86.5 3.2 3600 5000 51209
45 65 14 26.5 69.5 2.55 4500 6300 51109
45 100 39 124 240 9 2200 3000 51409
45 85 28 76.1 153 5.6 2800 4000 51309
45 85 30.1 33 76.1 153 5.6 2600 3800 53309 U 309
50 78 23.5 26 49.4 116 4.3 3200 4500 53210 U 210
50 110 45.6 50 159 340 12.5 1900 2600 53410 U 410
50 70 14 27 75 2.8 4300 6300 51110
50 78 22 49.4 116 4.3 3400 4500 51210
50 110 43 159 340 12.5 2000 2800 51410
50 95 31 81.9 170 6.3 2600 3600 51310
50 95 34.3 37 81.9 170 6.3 2400 3400 53310 U 310
55 90 27.3 30 58.5 134 4.9 2800 3800 53211 U 211
55 120 50.5 55 195 400 14.6 1700 2400 53411 U 411
55 78 16 30.2 81.5 3 3800 5300 51111
55 90 25 58.5 134 4.9 2800 4000 51211
55 120 48 195 400 14.6 1800 2400 51411
55 105 35 101 224 8.3 2200 3200 51311
55 105 39.3 42 101 224 8.3 2200 3000 53311 U 311
60 95 28 31 59.2 140 5.1 2600 3600 53212 U 212
60 130 51 199 430 16 1600 2200 51412 M
60 130 54 58 199 430 16 1600 2200 53412 M U 412
60 85 17 41.6 122 4.55 3600 5000 51112
60 95 26 59.2 140 5.1 2800 3800 51212
60 110 35 101 224 8.3 2200 3000 51312
60 110 38.3 42 101 224 8.3 2000 3000 53312 U 312
65 100 28.7 32 60.5 150 5.5 2600 3600 53213 U 213
65 100 27 60.5 150 5.5 2600 3600 51213
65 90 18 37.7 108 4 3400 4800 51113
65 115 36 106 240 8.8 2000 3000 51313
65 140 56 216 490 18 1500 2200 51413 M
65 115 39.4 43 106 240 8.8 2000 2800 53313 U 313
70 105 27 32 62.4 160 5.85 2600 3600 53214 U 214
70 150 63.6 69 234 550 19.3 1400 2000 53414 M U 414
70 105 27 62.4 160 5.85 2600 3600 51214
70 95 18 40.3 120 4.4 3400 4500 51114
70 125 40 135 320 11.8 1900 2600 51314
70 150 60 234 550 19.3 1400 2000 51414 M
70 125 44.2 48 135 320 11.8 1800 2600 53314 U 314
75 160 65 251 610 20.8 1300 1800 51415 M
75 110 28.3 32 63.7 170 6.2 2400 3400 53215 U 215
75 110 27 63.7 170 6.2 2400 3400 51215
75 100 19 44.2 134 4.9 3200 4300 51115
75 135 44 163 390 14 1700 2400 51315
75 160 69 75 251 610 20.8 1300 1800 53415 M U 415
75 135 48.1 52 163 390 14 1700 2400 53315 U 315
80 170 68 302 750 25 1200 1700 51416 M
80 115 29.5 33 76.1 208 7.65 2400 3200 53216 U 216
80 115 28 76.1 208 7.65 2400 3400 51216
80 105 19 44.9 140 5.1 3000 4300 51116
80 140 44 159 390 13.7 1700 2400 51316
80 140 47.6 52 159 390 13.7 1600 2200 53316 U 316
85 125 33.1 37 97.5 275 9 2000 3000 53217 U 217
85 125 31 97.5 275 9.8 2200 3000 51217
85 180 72 286 750 24 1200 1600 51417 M
85 110 19 44.9 146 5.4 3000 4300 51117
85 150 49 174 405 14 1600 2200 51317
85 150 53.1 58 174 405 14 1500 2000 53317 U 317
90 190 81.2 88 307 815 25.5 1100 1500 53418 M U 418
90 135 38.5 42 112 290 10.4 1900 2600 53218 U 218
90 135 35 112 290 10.4 2000 2800 51218
90 190 77 307 815 25.5 1100 1500 51418 M
90 120 22 59.2 208 7.5 2600 3800 51118
90 155 50 182 440 14.6 1500 2200 51318
90 155 54.6 59 182 440 14.6 1400 2000 53318 U 318
100 210 85 371 1060 31.5 950 1400 51420 M
100 210 90 98 371 1060 31.5 950 1300 53420 M U 420
100 150 40.9 45 119 325 10.8 1700 2400 53220 U 220
100 135 25 80.6 265 9.15 2400 3200 51120
100 150 38 119 325 10.8 1800 2400 51220
100 170 55 225 570 18.3 1400 1900 51320
100 170 59.2 64 225 570 18.3 1300 1800 53320 U 320
110 160 40.2 45 125 365 11.6 1700 2400 53222 U 222
110 145 25 83.2 285 9.5 2200 3200 51122
110 190 63 281 815 24.5 1200 1700 51322 M
110 190 67.2 72 281 815 24.5 1100 1600 53322 M U 322
110 160 38 125 365 11.6 1700 2400 51222
110 230 95 410 1220 34.5 900 1300 51422 M
120 170 40.8 46 127 390 11.8 1500 2200 53224 U 224
120 155 25 85.2 305 9.65 2200 3000 51124
120 170 39 127 390 11.8 1600 2200 51224
120 250 102 432 1320 36 800 1100 51424 M
120 210 70 325 980 28.5 1100 1500 51324 M
120 210 74.1 80 325 980 28.5 1000 1400 53324 M U 324
130 270 110 520 1730 45 750 1000 51426 M
130 225 75 358 1140 32 1000 1400 51326 M
130 190 47.9 53 186 585 17 1300 1800 53226 U 226
130 170 30 119 440 13.4 1900 2600 51126
130 190 45 186 585 17 1400 2000 51226
140 200 48.6 55 190 620 17.6 1300 1800 53228 U 228
140 180 31 111 440 12.9 1800 2600 51128
140 200 46 190 620 17.6 1400 1900 51228
140 280 112 520 1730 44 700 1000 51428 M
140 240 80 377 1220 32.5 950 1300 51328 M
150 250 80 390 1290 34 900 1300 51330 M
150 300 120 559 1960 48 670 950 51430 M
150 215 50 238 800 22 1300 1800 51230 M
150 190 31 111 440 12.5 1700 2400 51130 M
160 270 87 449 1660 41.5 850 1200 51332 M
160 200 31 112 465 12.9 1700 2400 51132 M
160 225 51 238 830 22.4 1200 1700 51232 M
170 215 34 133 540 14.3 1600 2200 51134 M
170 280 87 468 1760 43 800 1100 51334 M
170 240 55 270 930 24 1200 1700 51234 M
180 250 56 302 1120 28.5 1200 1600 51236 M
180 300 95 520 2000 47.5 750 1100 51336 M
180 225 34 135 570 15 1500 2200 51136 M
190 240 37 172 710 18 1400 2000 51138 M
190 270 62 332 1270 31 1100 1600 51238 M
190 320 105 559 2200 51 700 950 51338 M
200 250 37 168 710 17.6 1400 1900 51140 M
200 280 62 338 1320 31.5 1100 1500 51240 M
200 340 110 624 2600 58.5 630 900 51340 M
220 270 37 178 800 19 1300 1900 51144 M
220 300 63 358 1460 33.5 950 1300 51244 M
240 300 45 234 1040 23.6 1100 1600 51148 M
240 340 78 449 1960 42.5 800 1100 51248 M
260 360 79 488 2240 46.5 750 1100 51252 M
260 320 45 238 1100 24 1100 1500 51152 M
280 380 80 488 2320 47.5 750 1000 51256 M
280 350 53 319 1460 30.5 950 1300 51156 M
300 380 62 364 1760 35.5 850 1200 51160 M
300 420 95 585 3000 57 630 850 51260 M
320 400 63 371 1860 36.5 800 1100 51164 M
320 440 95 572 3000 56 600 800 51264 F
340 420 64 377 1960 37.5 800 1100 51168 M
340 540 160 1040 5850 10.4 400 560 51368 F
340 460 96 605 3200 58.5 530 750 51268 F
360 440 65 390 2080 38 750 1100 51172 F
360 440 48 255 1500 27.5 900 1200 59172 F
360 500 110 741 4150 73.5 500 700 51272 F
366 440 65 296 1460 27 750 110 BD1B 634132
380 460 48 255 1530 28 850 1200 59176 F
380 520 112 728 4150 72 500 700 51276 F
380 460 36 186 1140 20.8 1000 1400 351793
380 460 65 397 2200 40 750 1000 51176 F
400 440 30 124 830 16.3 1100 1600 51080 F
400 540 112 761 4500 76.5 500 700 51280 F
400 480 48 260 1630 28.5 850 1200 59180 F
400 480 65 403 2280 40.5 700 1000 51180 F
415.2 544.9 125 923 5700 96.5 450 630 BD1B 351955
420 580 130 884 5500 90 430 600 51284 F
420 500 48 265 1700 30 850 1200 59184 F
420 460 30 125 880 16.6 1100 1600 51084 F
420 500 65 410 2400 41.5 700 1000 51184 F
440 540 80 527 3250 55 600 850 51188 F
440 600 130 904 5700 93 430 600 51288 F
440 520 65 302 1630 27.5 670 950 BD1B 634131
440 540 60 238 1500 25 700 1000 59188 F
440 480 30 127 915 17 1100 1500 51088 F
460 500 30 130 950 17.6 1100 1500 51092 F
460 560 60 242 1430 25 700 950 59192 F
460 560 80 527 3250 54 600 800 51192 F
460 620 130 923 5850 95 430 600 51292 F
480 580 60 242 1460 25.5 670 950 59196 F
480 580 80 540 3550 56 560 800 51196 F
480 520 30 133 1000 18 1000 1500 51096 F
480 650 135 995 6550 102 400 560 51296 F
500 540 30 133 1120 18.3 1000 1400 510/500 F
500 600 80 553 3600 57 560 800 511/500 F
500 670 135 1010 6800 104 380 530 512/500 F
500 600 60 247 1660 26 670 950 591/500 F
530 580 38 203 1600 25 850 1200 510/530 F
530 640 67 468 3150 48 600 850 591/530 F
530 590 36 178 1370 21.6 900 1200 351794
530 640 85 650 4400 68 530 750 511/530 F
560 610 38 203 1660 25 850 1200 510/560 F
560 670 67 468 3250 48 600 800 591/560 F
560 670 85 650 4650 68 500 700 511/560 F
600 870 118 1120 8000 118 220 300 BD1-8000
600 650 38 212 1800 26.5 800 1100 510/600 F
600 710 67 475 3400 49 560 800 591/600 F
600 800 90 676 5000 69.5 450 630 350769
600 710 85 663 4800 69.5 500 700 511/600 F
630 750 73 540 4000 57 530 750 591/630 F
630 680 38 221 1930 28 800 1100 510/630 F
630 750 95 728 5400 76.5 450 630 511/630 F
670 800 78 540 4150 57 480 670 591/670 F
670 730 45 286 2400 34 700 950 510/670 F
670 800 105 852 6700 91.5 400 560 511/670 M
670 800 105 852 6700 91.5 400 560 511/670 F
710 850 85 676 5400 72 450 630 591/710 JR
710 850 112 936 7650 100 380 530 511/710 F
710 780 53 358 2850 39 600 850 510/710 F
750 820 53 364 3050 40.5 600 850 510/750 F
750 900 120 1010 8650 110 340 480 511/750 M
750 900 90 741 6400 83 400 600 591/750 F
800 870 53 371 3200 40.5 560 800 510/800 F
800 950 120 1010 9000 112 340 480 511/800 F
800 950 90 761 6550 83 400 560 591/800 M
850 1000 90 761 6800 83 380 560 591/850 M
850 920 53 377 3450 43 560 800 510/850 M
850 1000 120 1060 9500 116 320 450 511/850 F
900 980 63 527 4900 58.5 480 670 510/900 M
900 1060 130 1140 10800 127 300 430 511/900 F
900 1060 95 630 7650 90 360 500 591/900 M
950 1080 63 540 5100 60 480 670 510/950 M
950 1120 135 1330 12000 137 280 400 511/950 F
950 1120 103 852 8150 95 340 480 591/950 M
980 1120 120 1010 10000 114 300 430 BD1B351883A
1000 1180 140 1330 13200 150 260 380 511/1000 F
1000 1090 70 572 5500 63 430 600 510/1000 M
1000 1180 109 923 9150 102 320 430 591/1000 M
1060 1250 115 1010 10400 112 300 400 591/1060 JR
1060 1150 70 572 5850 64 430 600 510/1060 M
1060 1250 150 1430 15000 163 240 340 511/1060 M
1120 1320 160 1530 16300 173 220 320 511/1120 F
1180 1400 175 1780 20000 204 200 280 511/1180 F
1250 1500 150 1430 16000 160 220 300 351006 A
1380 1535 130 1330 16300 156 240 340 BD1B351890A
1400 1630 180 1900 23600 224 180 260 511/1400 JR

Packaging Details:

1.Tube packing.

2.Plastic bag +carton

3.According to customer requirement
Delivery Detail: In general 5-10 days after we received your orders

initpintu_300IMG_20170414_104928Shipping001

相关产品

Needle Roller Bearings, Needle Roller And Cage Assemblies

Double Row Angular Contact Ball Bearings – Open Type

Spherical roller bearings, on a withdrawal sleeve

XR Cross Tapered Roller Bearings

Contact Info

product categories
