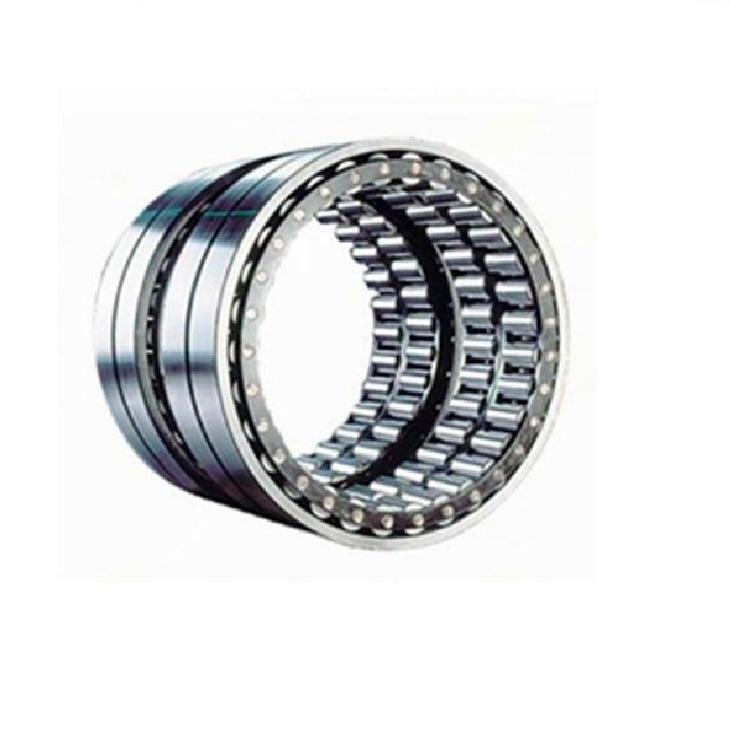

Four Row Cylindrical Roller Bearings
| Principal dimensions | Basic load ratings | Fatique load limit | Designation | ||||
| (mm) | (kN) | (kN) | |||||
| d | D | B | C | dynamic C | static C0 | Pu | |
| 160 | 230 | 130 | 130 | 842 | 1340 | 143 | 314190 |
| 160 | 230 | 168 | 168 | 1120 | 2200 | 240 | 315189 A |
| 165.1 | 225.45 | 168.3 | 168.3 | 1100 | 2240 | 240 | 315642/VJ202 |
| 180 | 260 | 168 | 168 | 1380 | 2500 | 265 | 313812 |
| 200 | 280 | 200 | 200 | 1650 | 3350 | 345 | 313893 |
| 200 | 290 | 192 | 192 | 1680 | 3200 | 320 | 313811 |
| 200 | 280 | 170 | 170 | 1470 | 3000 | 305 | 314385 |
| 200 | 270 | 170 | 170 | 1250 | 2700 | 275 | 314553 |
| 220 | 310 | 192 | 192 | 1830 | 3650 | 360 | 313839 |
| 230 | 330 | 206 | 206 | 2010 | 4000 | 390 | 313824 |
| 260 | 370 | 220 | 220 | 2330 | 4650 | 465 | 313823 |
| 280 | 390 | 220 | 220 | 2420 | 5000 | 490 | 313822 |
| 280 | 420 | 250 | 250 | 3690 | 6550 | 640 | NNUD 6056 ECMAS/P53 |
| 300 | 420 | 300 | 300 | 4020 | 8800 | 850 | 314484 D |
| 320 | 480 | 350 | 350 | 4950 | 10800 | 965 | 314274 B |
| 320 | 480 | 350 | 350 | 4570 | 11000 | 1020 | BC4B 316345 A |
| 330 | 460 | 340 | 340 | 4460 | 10200 | 950 | 313445 C |
| 340 | 480 | 370 | 350 | 4570 | 11000 | 1020 | 319040 A |
| 340 | 500 | 370 | 370 | 5230 | 11800 | 1080 | BC4B 322261/HB1 |
| 340 | 480 | 350 | 350 | 4950 | 11000 | 1020 | 314485 C |
| 340 | 450 | 250 | 250 | 2550 | 6000 | 550 | BC4-8050 |
| 350 | 500 | 380 | 380 | 5280 | 11400 | 1040 | 314563/VJ202 |
| 350 | 500 | 410 | 410 | 5830 | 13700 | 1200 | BC4B 322777/HB1 |
| 350 | 520 | 300 | 300 | 4290 | 9000 | 800 | BC2B 319878/VJ202 |
| 350 | 520 | 300 | 300 | 4290 | 9000 | 800 | BC4B 326909/HA3 |
| 355.6 | 482.6 | 269.87 | 269.87 | 2970 | 6400 | 585 | BC4-8022/HA1 |
| 356.67 | 550 | 400 | 400 | 5280 | 15000 | 1290 | BC4B 457939 VAA |
| 360 | 500 | 250 | 250 | 3470 | 8500 | 780 | BC2B 322217/VJ202 |
| 360 | 500 | 250 | 250 | 3910 | 7350 | 670 | BC2B 320075/VJ202 |
| 370 | 520 | 380 | 380 | 5500 | 13200 | 1160 | 314486 A |
| 380 | 540 | 400 | 400 | 6160 | 15000 | 1290 | BC4B 326366/HB1 |
| 380 | 540 | 400 | 380 | 5720 | 13700 | 1160 | 315606 |
| 380 | 560 | 325 | 325 | 5230 | 10600 | 930 | BC4B 322264/HB1 |
| 380 | 540 | 400 | 400 | 5720 | 13700 | 1180 | BC4B 313511 B |
| 380 | 540 | 400 | 380 | 6050 | 14000 | 1200 | BC4B 320989/HA3 |
| 382.5 | 590 | 450 | 450 | 6930 | 16300 | 1430 | 319352 |
| 390 | 540 | 320 | 320 | 5280 | 12200 | 1040 | BC4B 322498 |
| 399.93 | 590 | 440 | 440 | 8580 | 20400 | 1730 | 313038 A |
| 400 | 560 | 410 | 410 | 6270 | 15600 | 1400 | 313015 DC |
| 400 | 560 | 300 | 300 | 4680 | 10200 | 900 | BC4-8059 |
