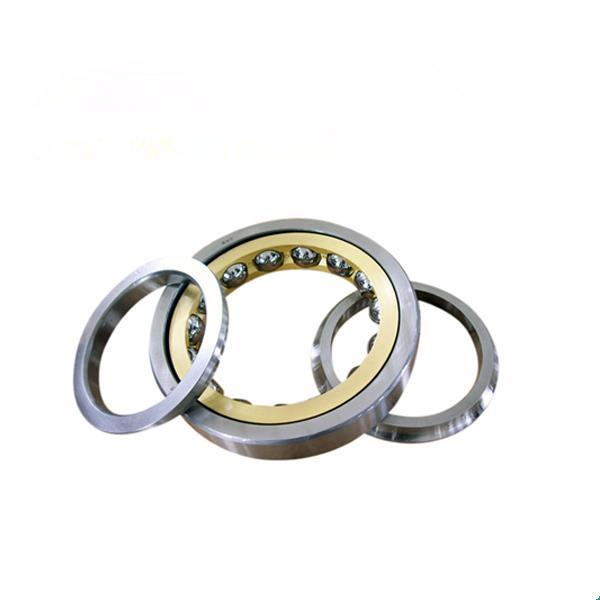

Four Point Contact Ball Bearings

BEARING
Four Point Contact Ball Bearings

Four Point Contact Ball Bearings

SKU库存: 9999 分类:

Four Point Contact Ball Bearings

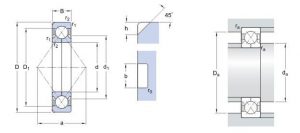

6361439200256191714632631



Principal dimensions Basic load ratings Fatigue load limit Speed ratings Designation
(mm) (kN) (kN) (r/min)
d D B Dynamic C Static
C0		 Pu Reference speed Limiting speed
15 35 11 12.7 8.3 0.355 22000 36000 QJ 202 N2MA
17 40 12 17 11.4 0.48 22000 30000 QJ 203 N2MA
17 47 14 23.4 15 0.64 17000 28000 QJ 303 N2MA
20 52 15 32 21.6 0.93 20000 24000 QJ 304 N2PHAS
20 52 15 32 21.6 0.93 18000 24000 QJ 304 MA
20 52 15 32 21.6 0.93 18000 24000 QJ 304 N2MA
25 62 17 42.5 30 1.27 15000 20000 QJ 305 MA
25 52 15 27 21.2 0.9 16000 22000 QJ 205 N2MA
25 62 17 42.5 30 1.27 15000 20000 QJ 305 N2MA
25 52 15 27 21.2 0.9 16000 22000 QJ 205 MA
30 72 19 53 41.5 1.76 14000 17000 QJ 306 N2PHAS
30 62 16 37.5 30.5 1.29 14000 19000 QJ 206 N2MA
30 72 19 53 41.5 1.76 12000 17000 QJ 306 MA
30 62 16 37.5 30.5 1.29 14000 19000 QJ 206 MA
30 72 19 53 41.5 1.76 12000 17000 QJ 306 N2MA
35 80 21 64 51 2.16 11000 15000 QJ 307 MA
35 80 21 64 51 2.16 13000 15000 QJ 307 N2PHAS
35 80 21 64 51 2.16 11000 15000 QJ 307 N2MA
35 72 17 49 41.5 1.76 12000 17000 QJ 207 N2MA
40 80 18 56 49 2.08 11000 15000 QJ 208 PHAS
40 80 18 56 49 2.08 11000 15000 QJ 208 N2MA
40 90 23 78 64 2.7 11000 14000 QJ 308 N2PHAS
40 90 23 78 64 2.7 10000 14000 QJ 308 MA
40 80 18 56 49 2.08 11000 15000 QJ 208 MA
40 90 23 78 64 2.7 10000 14000 QJ 308 N2MA
45 100 25 100 83 3.55 10000 12000 QJ 309 N2PHAS
45 100 25 100 83 3.55 9000 12000 QJ 309 MA
45 85 19 63 56 2.36 10000 14000 QJ 209 MA
45 100 25 100 83 3.55 9000 12000 QJ 309 N2MA
45 100 25 100 83 3.55 10000 12000 QJ 309 PHAS
50 110 27 118 100 4.25 9000 11000 QJ 310 PHAS
50 90 20 65.5 61 2.6 9000 13000 QJ 210 MA
50 110 27 118 100 4.25 8000 11000 QJ 310 MA
55 100 21 85 83 3.55 8000 11000 QJ 211 N2MA
55 120 29 137 118 5 7000 10000 QJ 311 N2MA
55 120 29 137 118 5 7000 10000 QJ 311 MA
55 100 21 85 83 3.55 8000 11000 QJ 211 MA
60 110 22 96.5 93 4 8500 10000 QJ 212 N2PHAS
60 110 22 96.5 93 4 7500 10000 QJ 212 N2MA
60 130 31 156 137 5.85 6700 9000 QJ 312 MA
60 130 31 156 137 5.85 7500 9000 QJ 312 PHAS
60 130 31 156 137 5.85 6700 9000 QJ 312 N2MA
60 110 22 96.5 93 4 7500 10000 QJ 212 MA
65 140 33 176 156 6.55 7000 8500 QJ 313 N2PHAS
65 140 33 176 156 6.55 6300 8500 QJ 313 MA
65 120 23 110 112 4.75 6700 9500 QJ 213 N2MA
65 120 23 110 112 4.75 8000 9500 QJ 213 N2PHAS
65 120 23 110 112 4.75 6700 9500 QJ 213 MA
70 125 24 120 122 5.2 7500 9000 QJ 214 N2PHAS
70 125 24 120 122 5.2 6300 9000 QJ 214 N2MA
70 150 35 200 180 7.35 5600 8000 QJ 314 MA
70 150 35 200 180 7.35 5600 8000 QJ 314 N2MA
70 150 35 200 180 7.35 6700 8000 QJ 314 N2PHAS
70 125 24 120 122 5.2 6300 9000 QJ 214 MA
75 160 37 216 200 7.8 6300 7500 QJ 315 N2PHAS
75 130 25 125 132 5.6 6300 8500 QJ 215 N2MA
75 130 25 125 132 5.6 7000 8500 QJ 215 N2PHAS
75 130 25 125 132 5.6 6300 8500 QJ 215 MA
75 160 37 216 200 7.8 5300 7500 QJ 315 N2MA
80 140 26 146 156 6.4 5600 8000 QJ 216 N2MA
80 140 26 146 156 6.4 5600 8000 QJ 216 MA
80 170 39 232 228 8.65 5000 7000 QJ 316 N2MA
80 170 39 232 228 8.65 5600 7000 QJ 316 N2PHAS
85 150 28 156 173 6.7 5300 7500 QJ 217 N2MA
85 130 22 99.5 114 4.65 5000 8000 QJ 1017 N2MA/C4
85 150 28 156 173 6.7 5300 7500 QJ 217 MA
85 180 41 250 255 8.65 4800 6700 QJ 317 N2MA
90 190 43 285 305 11 4500 6300 QJ 318 N2MA
90 160 30 186 200 7.65 5000 7000 QJ 218 N2MA
90 190 43 285 305 11 5000 6300 QJ 318 N2PHAS
95 170 32 212 232 8.5 4800 6700 QJ 219 N2MA
95 200 45 305 340 11.8 4800 6000 QJ 319 N2PHAS
95 170 32 212 232 8.5 4800 6700 QJ 219 N2PHAS
95 200 45 305 340 11.8 4300 6000 QJ 319 N2MA
100 180 34 236 265 9.5 4500 6300 QJ 220 N2MA
100 215 47 345 400 13.7 4000 5600 QJ 320 N2MA
105 160 26 135 170 6.3 4000 6700 QJ 1021 N2MA/C4
110 170 28 153 193 6.8 3800 6300 QJ 1022 N2MA/C4
110 240 50 390 480 15.3 3600 4800 QJ 322 N2MA
110 200 38 280 325 11.2 4000 5600 QJ 222 N2MA
120 260 55 415 530 16.3 3200 4500 QJ 324 N2MA
120 215 40 300 365 12 3600 5000 QJ 224 N2MA
130 280 58 455 610 18 3000 4000 QJ 326 N2MA
130 230 40 310 400 12.7 3400 4800 QJ 226 N2MA
140 250 42 345 475 14.3 3200 4300 QJ 228 N2MA
140 300 62 500 695 20 2800 3800 QJ 328 N2MA
150 270 45 400 570 16.6 3000 4000 QJ 230 N2MA
150 320 65 530 765 21.2 2600 3600 QJ 330 N2MA
150 225 35 242 335 10.4 2800 4500 QJ 1030 N2MA
160 340 68 570 880 23.6 2400 3400 QJ 332 N2MA
160 290 48 450 670 19 2800 3800 QJ 232 N2MA
160 240 38 270 380 11.4 2600 4300 QJ 1032 N2MA
170 360 72 655 1040 27 2200 3200 QJ 334 N2MA
170 310 52 455 720 20 2600 3400 QJ 234 N2MA
180 320 52 475 765 20.8 2400 3400 QJ 236 N2MA
180 380 75 680 1100 28 2200 3000 QJ 336 N2MA
190 400 78 702 1160 28.5 1700 2800 QJ 338 N2MA
190 340 55 510 850 22.4 2200 3200 QJ 238 N2MA
190 290 46 364 560 15.3 2200 3400 QJ 1038 N2MA
200 310 51 390 620 16.6 2000 3200 QJ 1040 N2MA
200 360 58 540 915 23.2 1800 3000 QJ 240 N2MA
200 360 70 520 865 21.6 1800 3000 QJ 1240 N2MA
220 460 88 780 1400 32 1500 2400 QJ 344 N2MA
220 400 78 364 1020 24.5 1800 1800 QJ 1244 N2MA
220 460 88 904 1660 38 1500 2400 QJ 344 N2/309829
240 440 85 663 1220 28 1500 2400 QJ 1248 MA/344524
240 440 72 650 1200 27.5 1500 2400 QJ 248 N2MA
260 480 90 741 1460 32 1300 2200 QJ 1252 MA
260 480 80 728 1430 32 1300 2200 QJ 252 N2MA
260 480 90 741 1460 32 1300 2200 QJ 1252 N2MA
280 500 90 728 1460 31.5 1300 2000 QJ 1256 N2MA
280 420 65 585 1140 25.5 1400 2400 QJ 1056 N2MA/C4
300 540 98 832 1760 36.5 1200 1900 QJ 1260 N2MA
300 460 74 650 1340 29 1300 2200 QJ 1060 N2MA
300 460 74 650 1340 29 1300 2200 QJ 1060 MA
320 580 105 956 2080 41.5 1100 1700 QJ 1264 N2MA
320 480 74 715 1530 32 1200 2000 QJ 1064 N2MA
320 480 74 715 1530 32 1200 2000 QJ 1064 MA
340 620 118 1060 2450 47.5 1000 1600 QJ 1268 MA/344524
340 520 82 780 1700 35.5 1100 1800 QJ 1068 N2MA
360 540 82 852 1930 38 1100 1700 QJ 1072 N2MA
360 650 122 1110 2600 49 950 1500 QJ 1272 N2MA
380 680 132 1170 2850 52 900 1400 QJ 1276 N2MA
380 560 82 819 1900 37.5 1000 1700 QJ 1076 N2MA
400 600 90 904 2160 40.5 950 1500 QJ 1080 N2MA
400 720 140 1300 3250 58.5 800 1300 QJ 1280 N2MA
420 760 150 1430 3750 64 750 1300 QJ 1284 N2MA
420 560 65 637 1600 30.5 950 1600 QJ 1984 MA
420 620 90 923 2280 42.5 900 1500 QJ 1084 N2MA
440 650 94 995 2500 45.5 850 1400 QJ 1088 N2MA
440 600 74 761 1900 35.5 900 1500 QJ 1988 N2MA
440 790 155 1400 3750 64 750 1200 QJ 1288 N2MA
460 680 100 1040 2650 46.5 800 1300 QJ 1092 N2MA
460 830 165 1530 4250 69.5 700 1100 QJ 1292 N2MA
480 700 100 1060 2800 48 750 1300 QJ 1096 N2MA
480 870 170 1680 4750 76.5 670 1100 QJ 1296 N2MA

Packaging Details:

1.Tube packing.

2.Plastic bag +carton

3.According to customer requirement
Delivery Detail: In general 5-10 days after we received your orders
