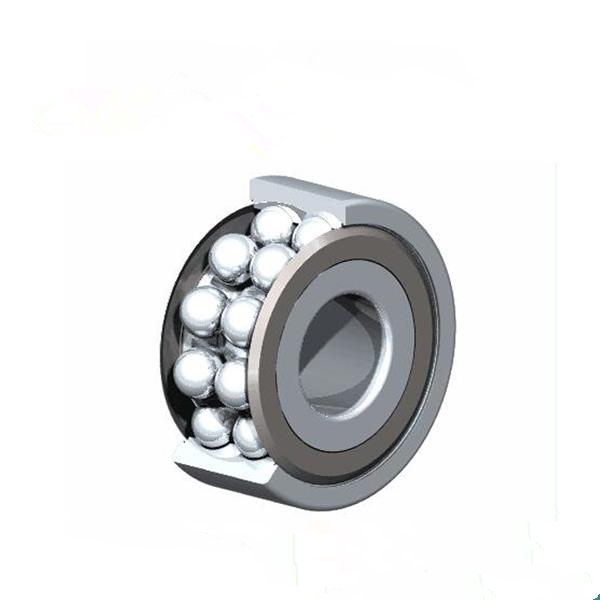

Double Row Angular Contact Ball Bearings – Shields Type

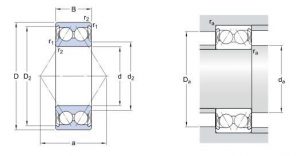

| Boundary Dimensions | Basic Load Rating | Limiting Speed | Bearing Designation | Mass | ||||
| (mm) | ( KN ) | (rpm) | (kg) | |||||
| d | D | B | r1、2min | Cr | Cor | ZZ | Approx | |
| 10 | 30 | 14 | 0.6 | 7.41 | 4.3 | 16000 | 3200A-ZZ | 0.051 |
| 12 | 32 | 15.9 | 0.6 | 10.1 | 5.6 | 15000 | 3201A-ZZ | 0.058 |
| 15 | 35 | 15.9 | 0.6 | 11.2 | 6.8 | 12000 | 3202A-ZZ | 0.066 |
| 17 | 40 | 17.5 | 0.6 | 14 | 8.65 | 10000 | 3203A-ZZ | 0.096 |
| 20 | 47 | 20.6 | 1 | 18.6 | 12 | 9000 | 3204A-ZZ | 0.16 |
| 25 | 52 | 20.6 | 1 | 20.3 | 14 | 8000 | 3205A-ZZ | 0.18 |
| 30 | 62 | 23.8 | 1 | 28.1 | 20 | 7000 | 3206A-ZZ | 0.29 |
| 35 | 72 | 27 | 1.1 | 37.1 | 27.5 | 6000 | 3207A-ZZ | 0.44 |
| 40 | 80 | 30.2 | 1.1 | 44.9 | 33.5 | 5600 | 3208A-ZZ | 0.58 |
| 45 | 85 | 30.2 | 1.1 | 47.5 | 38 | 5000 | 3209A-ZZ | 0.63 |
| 50 | 90 | 30.2 | 1.1 | 47.5 | 39 | 4800 | 3210A-ZZ | 0.66 |
| 15 | 42 | 19 | 1 | 15.1 | 9.15 | 10000 | 3302A-ZZ | 0.13 |
| 17 | 47 | 22.2 | 1 | 21.2 | 12.5 | 9500 | 3303A-ZZ | 0.18 |
| 20 | 52 | 22.2 | 1.1 | 22.1 | 14.3 | 8500 | 3304A-ZZ | 0.22 |
| 25 | 62 | 25.4 | 1.1 | 31.2 | 20.8 | 7500 | 3305A-ZZ | 0.35 |
| 30 | 72 | 30.2 | 1.1 | 41 | 28.5 | 6300 | 3306A-ZZ | 0.53 |
| 35 | 80 | 34.9 | 1.5 | 48.8 | 34 | 5600 | 3307A-ZZ | 0.73 |
| 40 | 90 | 36.5 | 1.5 | 59.2 | 43 | 5000 | 3308A-ZZ | 0.95 |
Packaging Details:
1.Tube packing.
2.Plastic bag +carton
3.According to customer requirement
Delivery Detail: In general 5-10 days after we received your orders
